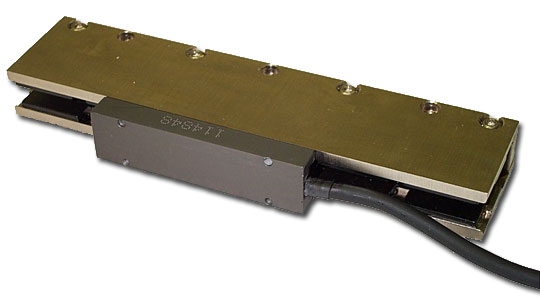

Cogging-Free Brushless Linear Motors:  LMCF
----------------------------------------------------------------
1、Cogging-Free Brushless Linear Motors:  LMCF


The Cog-free brushless linear motors are designed and made for unlimited travel System applications that need quite smooth operation and no cogging. These LMCF motors are supplied in kit package to be integrated into a customized equipment and machines. Servo Systems are mostly closed-loop.

2、Main Advantages and Features of LMCF
2-1   Peak forces to 2300 N
2-2   High acceleration to 98m/s2
2-3   High speeds to 6m/s with encoder resolution > 1micron
2-4   High accuracy 2.5µm/300m
2-5   Unlimited Travel length
2-6   No working parts metal-to-metal contact, virtually maintenance-free
2-7   High repeatability

3、LMCF Motor Types and Main Technical data
Motor                              LMCF Series
Continuous Force    N              4-250
Peak Force       N                150-2300
Acceleration E  m/s2                98
Maximum Speed   m/s                 5
Maximum Travel   M              Unlimited
Accuracy Q  µm/300mm               25
Repeatability R  µm                1
Positioning Type               Closed-Loop
Control System                 3-Phase BL
Load Support                Customization
All specifications are just only for references, actually, it needs contact with Toptech Engineers and get confirmed

4、LMCF Motors Sizes and Diagram
Contact with Toptech Engineers thru. Support@toptechelectric.com

5、LMCF Motors Drive Systems
Contact with Toptech Engineers thru. Support@toptechelectric.com
